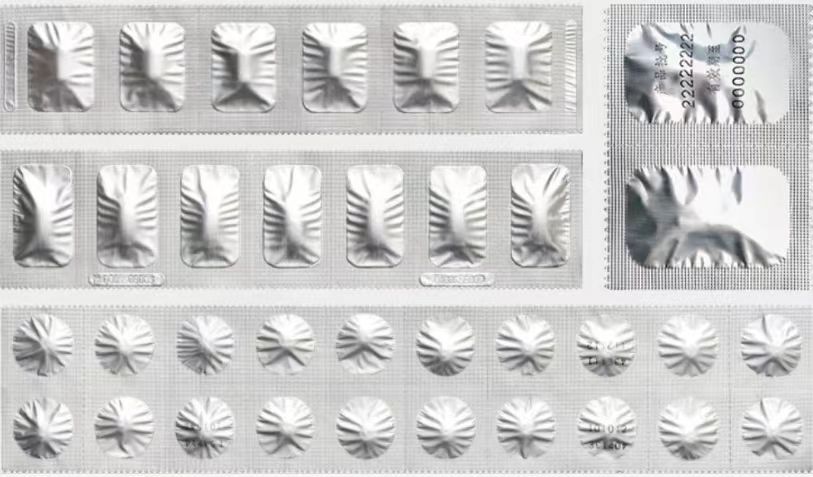

DXDP350 Strip Packing Machine is applicable for tablets, capsules and irregular shapes of pharmaceutical for mono or multi packing with double-Allight obstructing function,which is featured in small size ,compact structure, smooth and reliable operation, high production efficiency.
Features :
1.Automatic control step-less speed.
2.executive mechanisms of sealing,printing, tear-off-lining, cutting ,feeding featured in easy adjustment, safe and reliable operation.
3.New structure, diversified configuration meeting client's different requirement.
4.Option:eye-marking tracking,detection and eliminate unite.
5.Sealing area can be 350mm.
6.Tight structure , small ocupation and good outlook .
Parameter：
Foil | Alumium-Alumium/ Plastic-Plastic 软双铝 |
Foil width | ≤360mm |
Foil thickness | 0.07~0.1mm |
Foil out diameter | ≤φ300mm |
Foil inner diameter | φ70～φ76mm |
Max sealing area | ≤350mm |
Cutting frequency | 45-60times∕min |
Capacity | 1200bags/ min |
Power | 3.5kw |
Voltage | 380V 50Hz |
Dimension | 1400×1200×1800mm |
Weight | 1000kg |
