DXDP450 Strip Packing Machine

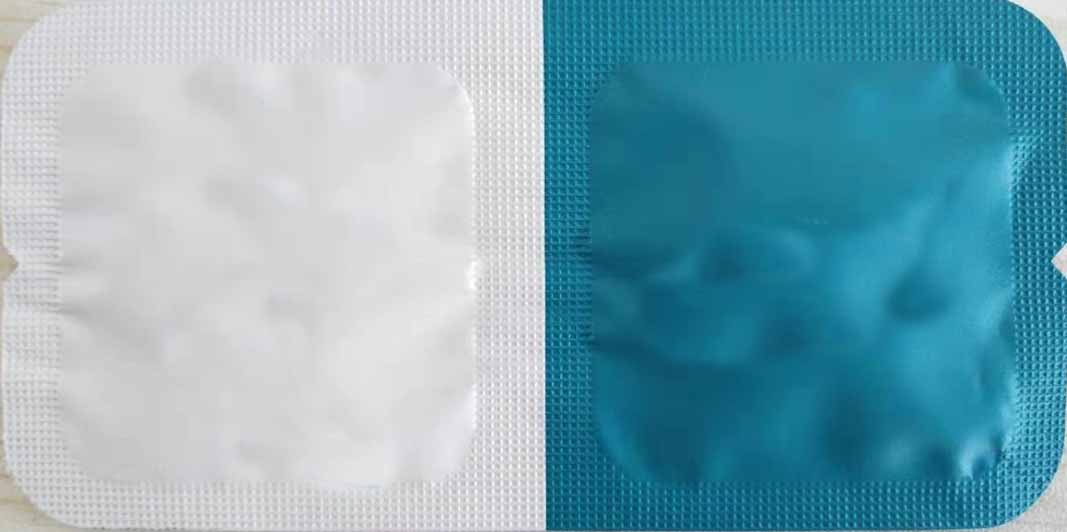

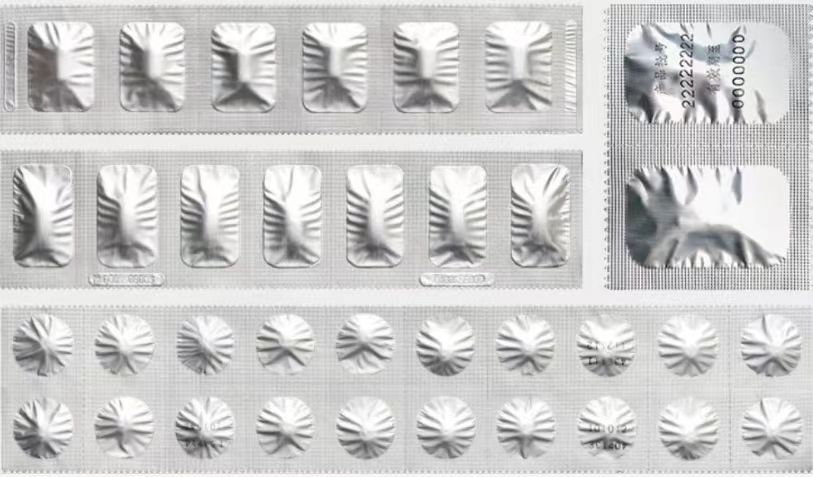

DXDP 450 Strip Packing Machine is applicable to pharmaceutical industry. Itcan pack single or multiple tablets of tablets,capsule,and regular shaped caplet with soft double alumnium lightproof packaging. Machine is controlled by HMI.Safe and stable system,easy operation,reliable operation. Photoelectric detection color mark,mechanical follow-up mark,ensure the integrity and accuracy of pattern printing. With the function of automatic batch number printing,vertical and horizontal breaking line,easy to install and operate. Adopt humanization design principle which can set the number of connecting bags cutting optionally. Automatic detection of material shortage and automatic removement device can ensure qualified rate of product is 100%.

Product Details

Characters

(1) Forming width can reach 450mm.

(2) Packing capacity can reach 90cutting/min.

(3)Machine adopt two rolls of film converge from two sides to heat sealing.Automatic mark correction and easy adjustment.

(4)Machine is controlled and adjusted by servo motor.Each actuator is adjusted by HMI.

(5)The unwinding adopt air-expansion shaft to bear roll material,easy and convenient for film replacement.

(6)Equipped with detection of material shortage and removement device, ensure the unqualified product are removed from qualified prodoct.

(7)Multiple embossing type can be equipped.

(8)Horizontal cutter is controlled by servo motor directly,low noise,reliable cutting, working steadily in a long-term.

(9)Reasonable layout,easy operation,good appearance.

Parameter：

Foil	Alumium-Alumium/Plastic-Plastic　/Paper-Plastic/aluminized composite sheet
Foil Width	≤450mm
Foil Thickness	0.07~0.15mm
Foil out diameter	≤φ300mm
Inner diameter of foil	φ70～φ76
Max sealing area	≤450mm
Cutting frequency	90times∕min
Power	8kw
Voltage	380V 50Hz
Dimension	1600×1420×2300mm
Weight	1500kg
