DXDK900A/1200  Sachet Packing Machine

DXDK900A/1200 Sachet Packing Machine

This machine run stable with compact structure, it is leading the advanced level of the same domestic t equipment, can be applicable for pharmaceutical, food, cosmetic industries. It can pack granule, powder, liquid and semi-sticky liquid four sides sachets.

(1)With frequency conversion regulation motor, we can choose different packing speed according to the packing product.

(2)The whole machine controlled by human-machine interface, is easy operation and run stable.

(3) Photoelectric sensor to trail, automatic color patch guarantees to make bag of two-side pattern accurate and integrity.

(4)Automatic type batch number, crossing tear breaking line and easy to tear line function to use easily.

(5)Can adjust the width and length of sachet.


Product Details

 Characteristic

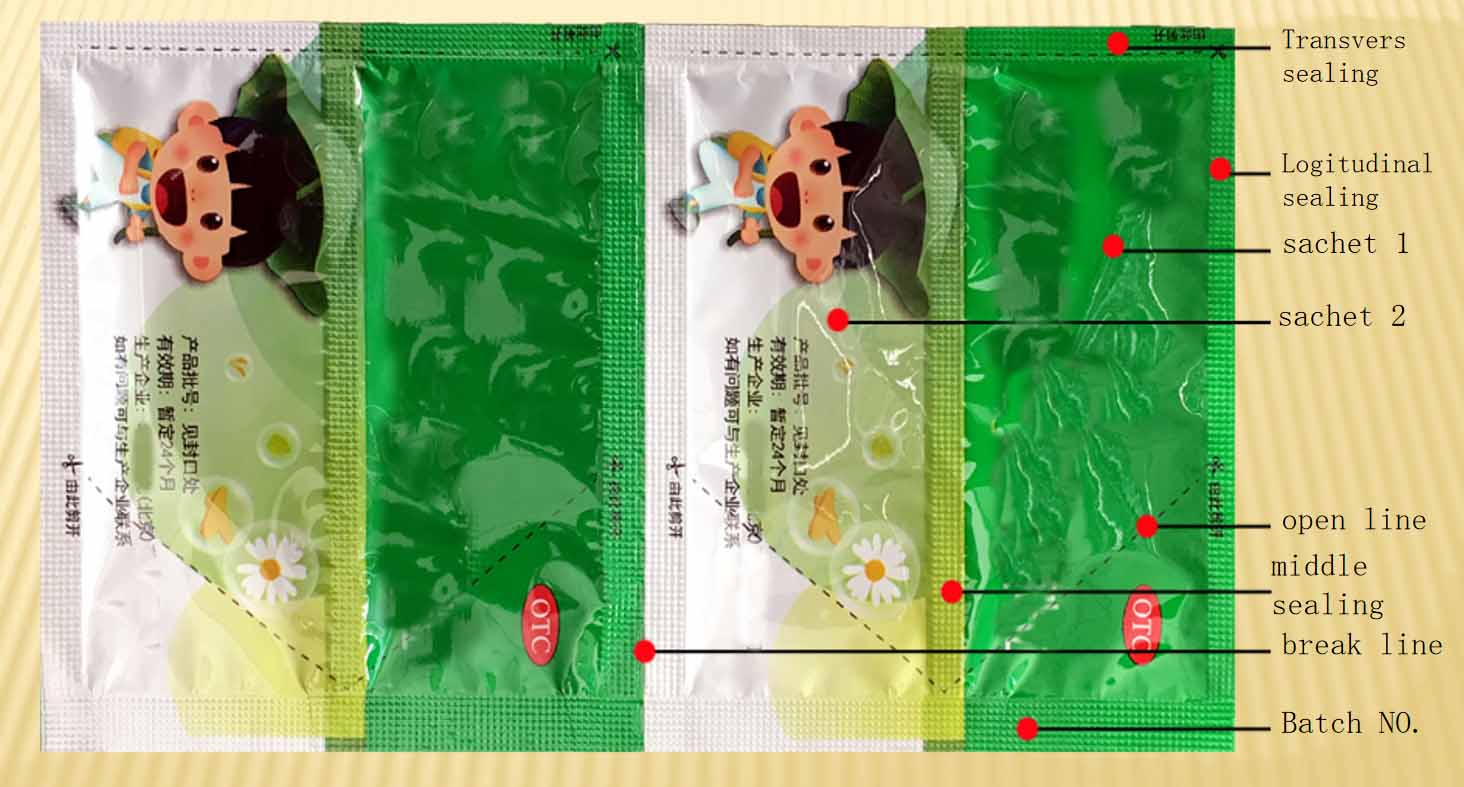

(1)The sealing area can reach 450mm, form 6 to 8lines.For powder only can form 6 lines

(2)The machine is a roll packing film which can be divided two parts for sealing, convenient adjustment.

(3)The position of implementing agencies is controlled and adjusted by differential mechanism through human-machine interface.

(4)The lengthways sealing, horizontal sealing, printing and cutting unit are installed two steel board which has enough rigidity to guarantee each bags with the same dimension.

(5)Layout is reasonable, small volume, nice appearance.


Parameters:

Item

DXDK900A

DXDK1200

Foil

Alumium-Alumium /Plastic-Plastic /Paper-Plastic /aluminized composite sheet

Alumium-Alumium /Plastic-Plastic /Paper-Plastic /aluminized composite sheet

Foil width

 ≤936mm

1190-1250mm

Foil Thickness

0.06-0.1mm

0.05-0.1mm

Max sealing width

≤450mm

≤550mm

Bag L

50~180mm

40~180mm

Bag W

40~150mm

40~170mm

Dose for granule and powder

0.5~20g

0.5~30g

Dose for liquid

1~40ml

1~50ml

Cutting frequency

≤60times/min

≤80times/min

Capacity

≤520bags/ min

≤800bags/ min

Power

13kw

13kw

Voltage

380V 50Hz

380V 50Hz

Dimension

 1600×1620×2100mm

2200×2100×2150mm

Weight

1200kg

2300kg
