DPP250/300 Blister packing machine(Plate forming)

DPP250/300 Blister packing machine(Plate forming)

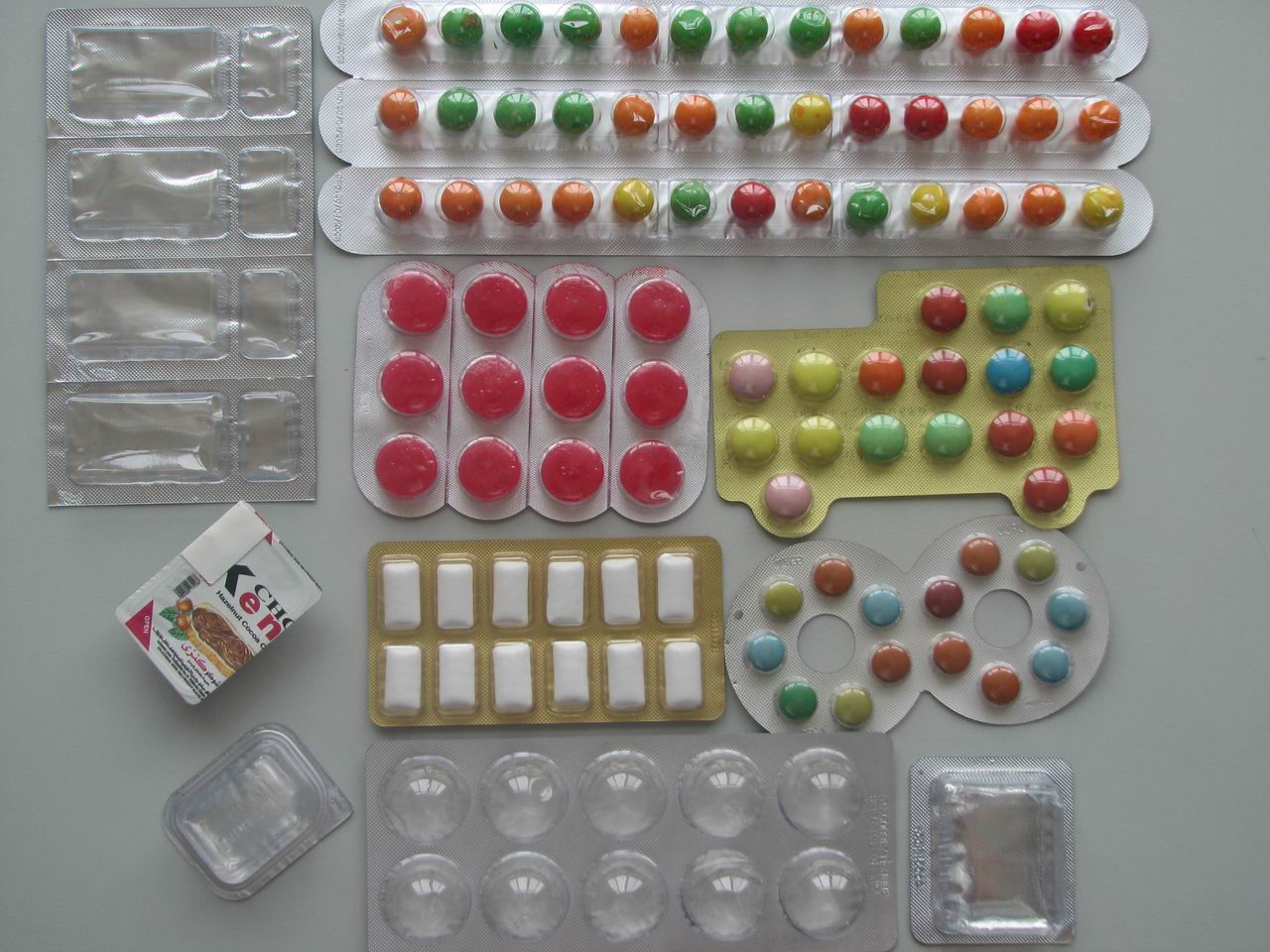

DPP250/300 Blister packing  machine  is  suitable  for  aluminum-plastic, aluminum- aluminum, paper-plastic laminated and sealed packing of capsule, tablet, sweet  and  deformed  tablet  in  the  pharmaceutical,  food,electronic and medical equipment industry. Besides  the aluminum automatic  feeding , the upper and lower texture, concavo-convex cooperating work-team, multi-stage  cylinder  heat  sealing,automatic  pressing  and printing batch number and aluminum alloy double heating.


Product Details

Features:

1.The distance among parts of forming ,heat sealing and punching can be adjusted at will to fit

for various medicines packing with high precision and strong usability.

2 .It pulls with manipulator ,adjusts travel at will, operates easily and runs reliably.

3.It adopts cycloid pinwheel to reduce speed and  makes the noise low and service life long.

4.It is replaced the mould easily and accurately, adjusts speed stepless and has good performance

and high efficiency.

5.The cursor alignment finishes the traction length compensating automatically.

6.Print automatically the batch Number in synchronism with ribbon.

7.The feeder can be changable according to the different products ,such as tablet , capsule , pills,liquid and sticky products , ampoule and vials etc .

8. It can connect with carton packing machine to be production line .



Parameters:

Items

DPP250

DPP300

Foil

PVC &(PTP)/ PTP&PTP/PTP&Paper

PVC &(PTP)/ PTP&PTP/PTP&Paper

PVC thickness

0.15-0.5 mm

0.15-0.5 mm

PVC diameter

   OD:  ≤φ 400mm

  OD:  ≤φ400mm

   ID : φ 70mm-76mm

  ID : φ 70mm-76mm

PVC width

250mm

300 mm

PTP thickness

0.02 mm

0.02 mm

PTP width

350 mm

300 mm

PTP diameter

   OD:  ≤φ 280mm

  OD:  ≤φ 280mm

   ID : φ 70mm-76mm

  ID : φ 70mm-76mm

Cutting frequency

25-40 times/minute

15-40 times/minute

Step distance

60-200mm

60-200mm

Max forming area

160x240mm

160x280mm

Max forming depth

30mm

30mm

Compressed air pressure

 0.6-0.8Mpa

 0.6-0.8Mpa

Pressure of cold water

 0.1-0.3Mpa

 0.1-0.3Mpa

Power

6kw

8kw

Voltage

380v/50Hz

380v/50Hz

Dimensions

3600×800×1650

3800x850x1650

Weight

1650kg

1950kg
